Yes, they are ideal for large-diameter pipeline applications.
x
- Phone :
+91 99677 07361
- Email :
sales.maxstrikevalves@gmail.com
- Certified Company :
ISO 9001:2015 & GMP

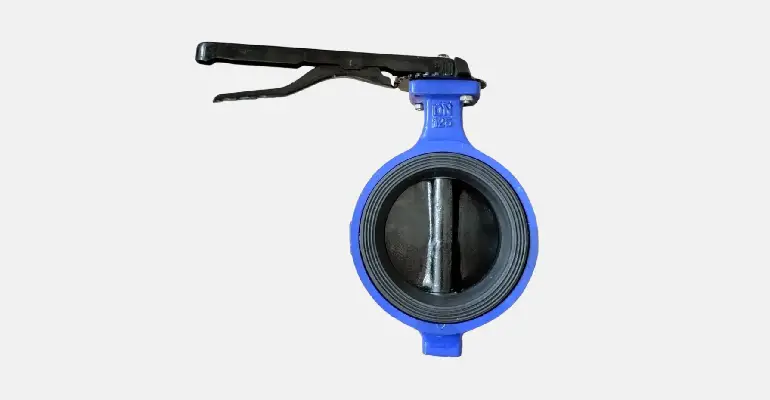

Butterfly Valves
Butterfly Valves
Max Strike Butterfly Valves offer efficient flow isolation and regulation with compact design. They are lightweight, cost-effective, and provide quick operation for large-diameter pipeline applications.
Suitable for water treatment, HVAC, fire protection, and industrial utilities, these valves ensure reliable sealing, smooth operation, and long service life under moderate pressure conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Wafer / Lug / Flanged Butterfly Valve |
| Size | 40 mm to 1200 mm |
| Pressure Rating | PN10 / PN16 / ANSI 150 |
| Design & Mfg. Standard | API 609 |
| Inspection & Testing Standard | API 598 |
| Body Material | Cast Iron, Ductile Iron, SS |
| Seat Material | EPDM, PTFE, NBR |
| End Connection | Wafer / Lug / Flanged |
| Face to Face Dimension | API 609 |
| Optional | Gear, Pneumatic, Electric Actuator |
Frequently Asked Question
-
1. Are butterfly valves suitable for large pipelines?
-
2. Can butterfly valves be automated?Yes, pneumatic and electric actuation options are available.
-
3. What industries use butterfly valves?They are commonly used in water, HVAC, and fire protection systems.
