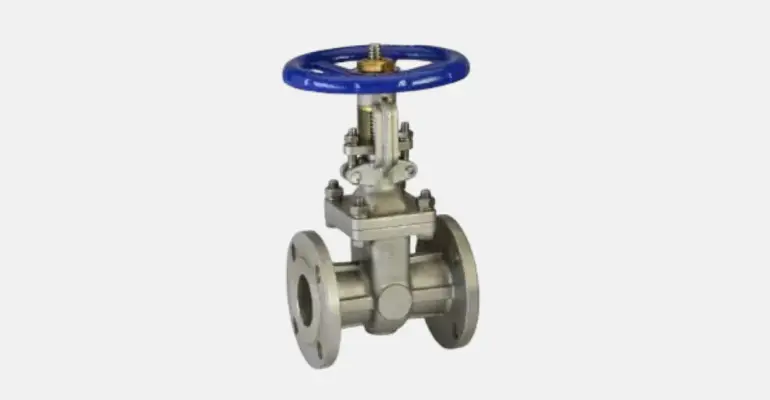

Gate Valves
Gate Valves
Max Strike Gate Valves are engineered for full-flow isolation with minimal resistance. They provide tight shut-off performance, making them ideal for applications requiring uninterrupted flow and reliable isolation.
Designed to meet international standards, these valves are widely used in oil & gas, power plants, water pipelines, and industrial utilities where durability and operational safety are critical.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Bolted Bonnet O.S. & Y Type Rising Stem |
| Size | 50 mm to 600 mm |
| Pressure Rating | 150, 300, 600, 900, 1500 |
| Design & Mfg. Standard | API 600 / BS 1414 |
| Inspection & Testing Standard | API 598 |
| Body Material | WCB, Cast Iron, CF8, CF8M, Alloy 20 |
| Trim Materials | 13% Cr, Stellited, AISI 304/316/Monel |
| End Connection | Flanged as per ANSI B16.5 / B16.25 |
| Face to Face Dimension | ANSI B16.10 |
| Optional | Manual Gearbox or Motorised Operation |
Frequently Asked Question
-
1. What is the main function of a gate valve?
-
2. Are these valves suitable for throttling?No, gate valves are recommended only for fully open or fully closed positions.
-
3. Do you offer motorized gate valves?Yes, electric motorized and gearbox-operated options are available.
